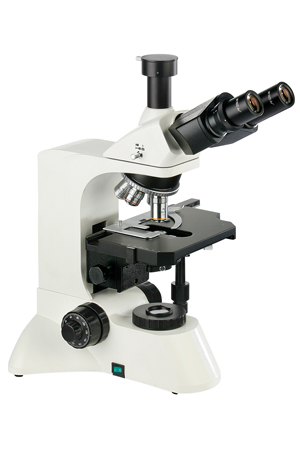

L3200series biological microscopes are equipped with infinity plan achromatic objectives and wide field eyepieces.

They have beautiful sculpt and provide clear image, wide field, convenience operation.

They can be used for biology medicine agriculture and industry area widely.

They are the ideal instrument in medical treatment, teaching demonstration and scientific research.

Features

Equipped with wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Maximal movement of stage is 30mm
Using Kohler illumination with Integrated field diaphragm and 6V30W halogen lamp, adding radiator and brightness control.
Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.

Model	L3200
Eyepiece	WF10X(¦µ22mm)
Objective	Infinity plan achromatic objective
	PL 4X/0.10(Work distance)：19.8 mm
	PL 10X/0.25(Work distance)：5.0mm
	PL 40X/0.65(Spring)(Work distance)：0.66 mm
	PL 100X/1.25(Spring, oil)(Work distance)： 0.36mm
Eyepiece tube	L3200HBG	Binocular (Inclination of 30˚)
	L3200HTG	Trinocular(Inclination of 30˚)
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Backward ball bearing inner locating)
Stage	Double layer mechanical (Size:210mmX140mm,Move range: 75mmX50mm)
Abbe condenser	N.A.1.25Rack & pinion adjustable
Filter	Blue filter
	Frosted filter
Collector	For halogen lamp(With field diaphragm )
Light source	6V 30W Halogen lamp with brightness control

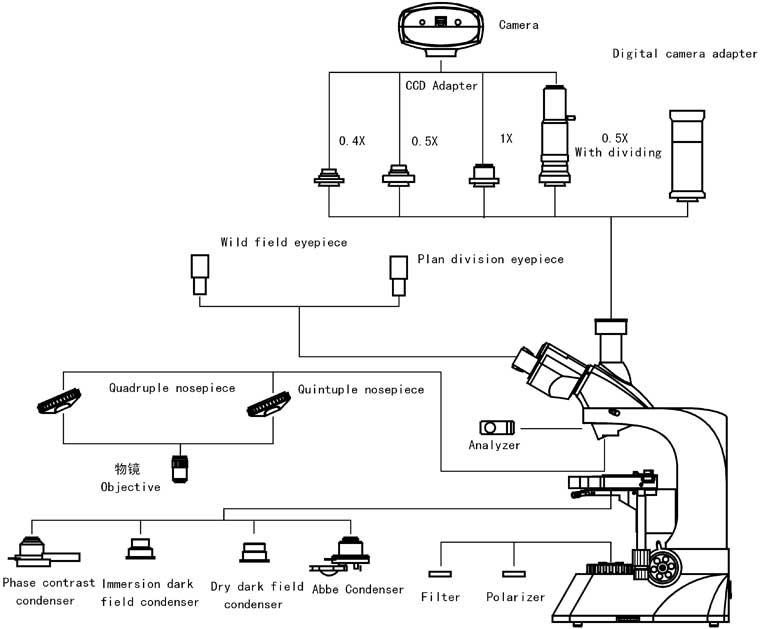

Name	Sort/Technique parameter		NO.
Eyepiece	Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div		1122010
Objective	Infinity plan achromatic objective
	PL 20X/0.40(Work distance)：8.8 mm		2060120
	PL 60X/0.85(Work distance)：0.25mm		2060160
Nosepiece	Quintuple(Backward ball bearing inner locating)		032002
Filter	Green filter		115002
	Yellow filter		115003
Condenser	Dark field	Dry type	051001
		Immersion type	051002
Phase contrast unit	Eyepiece	Centering telescope	110002
	Objectives	Infinity phase contrast plan achromatic 10X/0.25 PHP	2470110
		Infinity phase contrast plan achromatic 20X/0.40 PHP	2470120
		Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)	2470140
		Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2470111
	(PH-¢ñ) Turnplate phase contrast condenser		052001
	(PH-¢ò) Turnplate phase contrast condenser		052004
	Flashboard phase contrast condenser		052002
	Pull board phase contrast condenser		052003
CCD adapter	0.4X		810001
	0.5X		810004
	1X		810002
	0.5X with dividing 0.1mm/Div		810003
Camera	DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£©		800001
	DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£©		800003
	DV-3 With video output£¨380/520 TV line£©		800005
Photo unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		840001
	4X Focusing photograph attachment		840002
	MD adapter		840003
	PK adapter		840004
Digital camera adapter	CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F)		820001
Facility polarize	Polarizer	360° rotatable stage	111001
	Analyzer	Sliding type	111105
