Flourescence Microscope

L1501

Description
Specifications

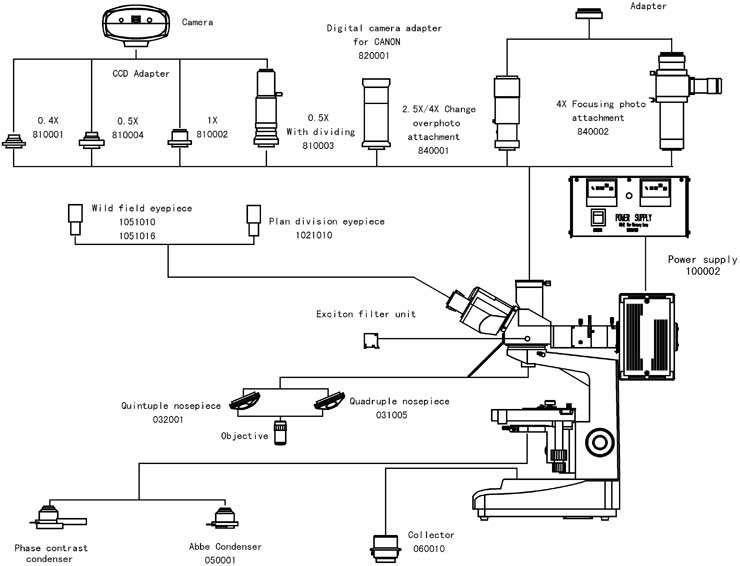

System diagram

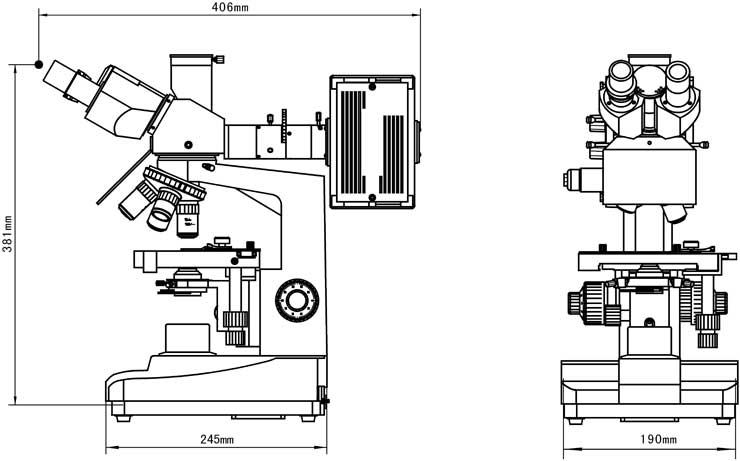

Dimension

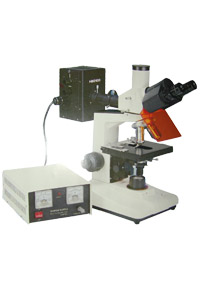

L1501 Reflected fluorescence microscope model is used for fluorescence microscopy and transmitted bright field microscopy observation. It is the ideal instrument in sediment in sedimentary rock, inspection of impurity of semiconductor, environmental protection and microchemistry etc. It is the ideal instrument in biology, cytology, oncology, genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features

With wide field eyepieces and achromatic objectives, the field of view is widely and clear
Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
6Volt 20Watt Halogen lamp with brightness control

Standard Configuration

Model	L1501
Eyepiece	Wide field WF10X(¦µ18mm)
Objective	Achromatic 4X/0.10
	Achromatic 10X/0.25
	Achromatic 100X/1.25(Spring, oil)
	Fluorescence 25X/0.65
Eyepiece tube	Trinocular (inclination of 30˚)
Focus system	Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing: 2μm.
Nosepiece	Quadruple(Backward ball bearing inner locating)
Stage	Double layer mechanical (Size:135mmX125mm, Move range: 75mmX35mm)
Abbe condenser	N.A.1.25 Rack & pinion adjustable
Filter	Blue filter
Filter	Frosted filter
Collector	For halogen lamp
Light source	6V 20W Halogen lamp with brightness control.
Reflected fluorescence system	Mercury lamp house 100W/DC
	Power supply unit:AV:110V or 220V
	Fluorescence filter system B exciton wavelength:420~485nm
	Fluorescence filter system G exciton wavelength:460~550nm

Optional accessories

Name	Sort/Technique parameter		NO.
Eyepiece	Wide field WF16X(¦µ11mm)		1051016
	10X dividing eyepiece 0.1mm/Div		1021010
Objective	Fluorescence objectives FL 40X/1.00 (Spring, Glycerin)		2600140
	Fluorescence objectives FL 100X/1.25 (Spring, Glycerin)		2600111
Nosepiece	Quintuple(Backward ball bearing inner locating)		032001
Filter	Green filter		115002
	Yellow filter		115003
Fluorescence power supply	100W fluorescence power supply(Wide voltage range and constant power and calculagraph)		100003
Reflected fluorescence system	Fluorescence filter system UV exciton wavelength:330~400nm		115103
	Fluorescence filter system V exciton wavelength:395~415nm		115104
Phase contrast unit	Eyepiece	Centering telescope	110001
	Objectives	Phase contrast plan achromatic 10X/0.25 PHP	2420110
		Phase contrast plan achromatic 20X/0.40 PHP	2420120
		Phase contrast plan achromatic 40X/0.65 PHP(Spring)	2420140
		Phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)	2420111
	(PH-1) Turnplate phase contrast condenser		052001
	(PH-2) Turnplate phase contrast condenser		052004
	Flashboard phase contrast condenser		052002
	Pull board phase contrast condenser		052003
CCD adapter	0.4X		810001
	0.5X		810004
	1X		810002
	0.5X with dividing 0.1mm/Div		810003
Camera	DV-1(With USB & video output)		800001
	DV-2(With USB output)		800003
	DV-3(With video output)		800005
Digital camera adapter	CANON digital camera adapter(A610,A620,A630,A640)		820001
Photograph unit	2.5X/4X Change over photograph attachment with 10X viewing eyepiece		840001
	4X Focusing photograph attachment		840002
	MD Adapter		840003
	PK Adapter		840004
