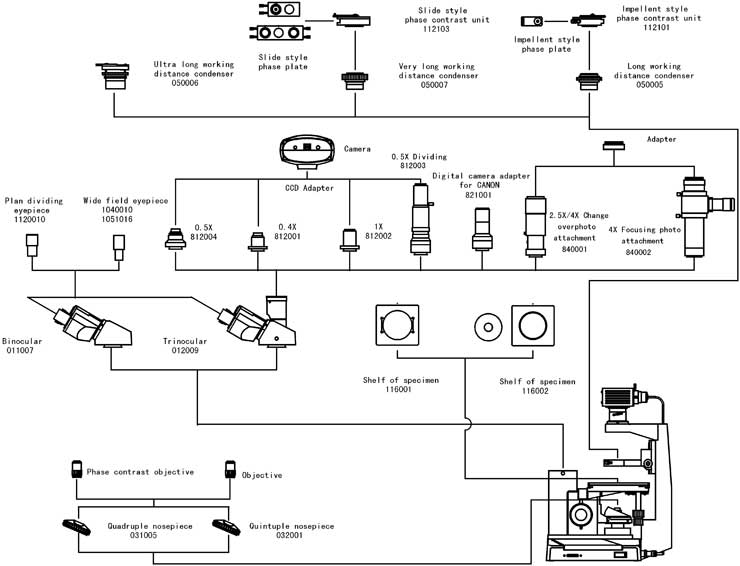

System diagram
-

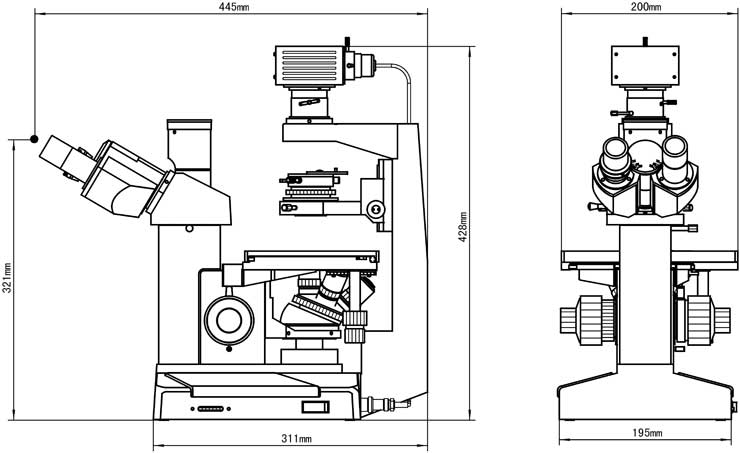

Dimension

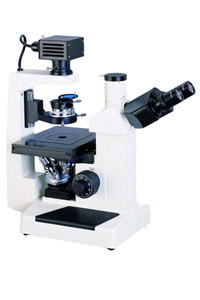

XDS-1 Inverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives, long working distance
condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the ideal
instrument suitable for research of living specimen structure, liquid, deposits and so on. It also can be used in research institutes, universities, medical
treatment, agriculture and animal husbandry etc.
Features
- Equipped with wide field eyepieces, long working distance plan achromatic objectives
- Equipped with phase contrast unit, include long working distance condenser, phase contrast objective and centering telescope
- Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- 6V 20W halogen lamp with brightness control
Standard Configuration
|
Model |
XDS-1 |
|
Eyepiece |
Wide field WF10X(¦µ20mm) |
|
Objective |
Long working distance plan achromatic PL L 10X/0.25 |
|
Long working distance plan achromatic PL L 25X/0.40 |
|
Long working distance plan achromatic PL L 40X/0.60 |
|
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP |
|
Eyepiece tube |
Trinocular (Inclination of 30°, 100% image light for photography capable) |
|
Focus system |
Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm. |
|
Nosepiece |
Quadruple(Ball bearing inner locating) |
|
Stage |
Double layer mechanical(Size200mmX152mm,moving range:75mmX30mm) |
|
Shelf of specimen |
Match to install ¦µ68mm or 77mmX33mm culture utensil |
|
Match to install ¦µ68mm culture utensil |
|
Filter |
Blue filter |
|
Green filter |
|
Frosted filter |
|
Impellent style phase contrast unit |
Centering telescope |
|
10X Impellent style phase plate |
|
Condenser Rack & pinion adjustable, NA=0.4,working distance: 30mm |
|
Light source |
6V 20W Halogen lamp with brightness control. |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
WF16X(¦µ11mm) |
1051016 |
|
Dividing 10X(¦µ20mm), 0.1mm/Div |
1120010 |
|
Nosepiece |
Quintuple(Ball bearing inner locating) |
032001 |
|
Condenser |
Ultra long working distance,W.D.:70mm |
050006 |
|
Filter |
Yellow filter |
115003 |
|
Impellent style phase contrast unit |
Objectives |
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP |
2430125 |
|
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP |
2430140 |
|
Impellent phase plate |
25X |
112002 |
|
40X |
112003 |
|
Sliding phase contrast unit |
Objectives |
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2 |
2430310 |
|
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2 |
2430325 |
|
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2 |
2430340 |
|
Sliding phase plate |
10X |
112004 |
|
25X/40X |
112005 |
|
Condenser Rack & pinion adjustable, NA=0.4,working distance: 55mm |
050007 |
|
CCD adapter |
0.4X |
812001 |
|
0.5X |
812004 |
|
1X |
812002 |
|
0.5X with dividing 0.1mm/Div |
812003 |
|
Camera |
DV-1(With USB & video output) |
800001 |
|
DV-2(With USB output) |
800003 |
|
DV-3(With video output) |
800005 |
|
Digital camera adapter |
CANON digital camera adapter(A610,A620,A630,A640) |
821001 |
|
Photograph unit |
2.5X/4X Change over photograph attachment with 10X viewing eyepiece |
840001 |
|
4X Focusing photograph attachment |
840002 |
|
MD Adapter |
840003 |
|
PK Adapter |
840004 |

|
