Description
-
Specifications
-

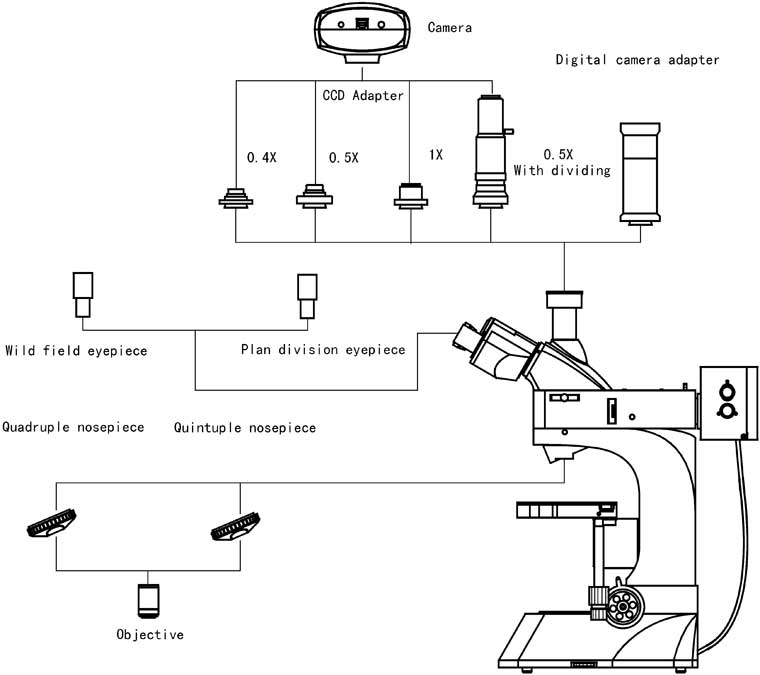

System diagram
-

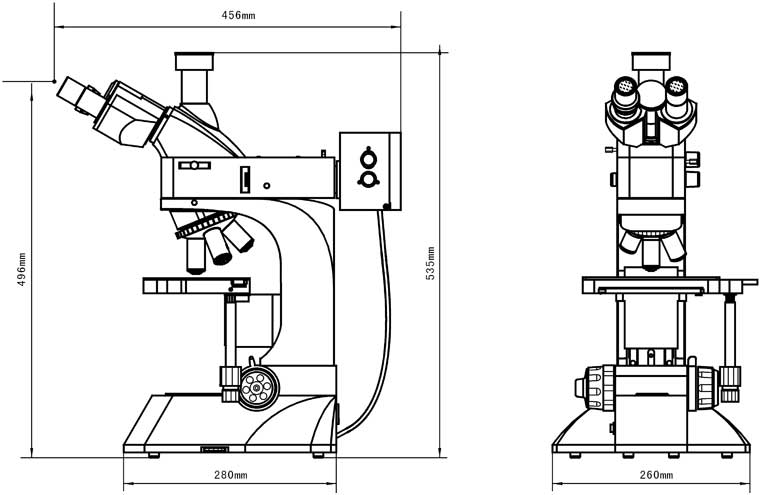

Dimension

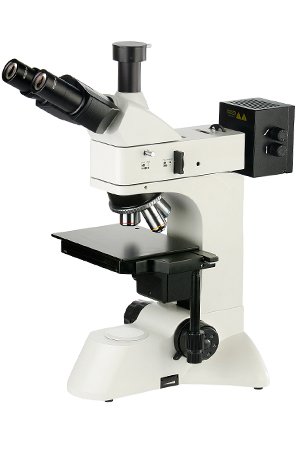

L3203 reflected metallurgical microscope is applicable to observe the opaque objects. It is equipped with Epi-illumination
system, infinity plan achromatic and long working distance objectives, wide-field eyepieces and integrated polarizing device.
It provides clear and good contrast picture, beautiful sculpt, convenient operation. It is the ideal instruments for research
work in metallography, mineralogy, precision engineering, electronics, etc. It is suitable for scientific research, teaching
demonstration in the colleges and factory.
Features
- Adopt infinity optical system and modularization function design.
- Infinity long W.D plan objectives , the field of view is widely and clear.
- Wide-field plan eyepieces: field number Ф22mm.
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
- Integrated polarization observation device, the polarizer can be circumrotated for 360°
- The Epi- illumination is 6V 30W halogen lamp and the lamp box cover can be revolved, replacing lamp facility and safety.
- Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits for low illuminance microphotography.
Standard Configuration
|
Model |
L3203 |
|
Eyepiece |
Wide field WF10X(¦µ22mm) |
|
Objective |
Infinity plan achromatic objectives with long working distance (no cover glass) |
|
PL L5X/0.12 (Work distance)：26.1 mm |
|
PL L10X/0.25 (Work distance)：20.2 mm |
|
PL L40X/0.60£¨spring£©(Work distance)：3.98 mm |
|
PL L60X/0.70£¨spring£©(Work distance)：3.18 mm |
|
Eyepieces tube |
Trinocular, Inclination of 30˚, (Analyzer with field diaphragm to switch) |
|
Epi- illumination
system |
6V 30W, halogen lamp, adjustable brightness |
|
Integrated field, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type polarizer. |
|
Focus system |
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
|
Nosepiece |
Quintuple (Backward ball bearing inner locating) |
|
Stage |
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div |
|
|
Objective |
Infinity plan achromatic objectives with long working distance (no cover glass) |
|
|
PL L 20X/0.40(Work distance)：8.80mm |
2260120 |
|
PL L50X/0.70£¨spring£©(Work distance)：3.68 mm |
2260150 |
|
PL L80X/0.80£¨spring£©(Work distance)：1.25 mm |
2260180 |
|
PL L 100X/0.85£¨spring£©£¨Work distance£©:0.4mm |
2260111 |
|
CCD adapter |
0.4X |
810001 |
|
0.5X |
810004 |
|
1X |
810002 |
|
0.5X with dividing 0.1mm/Div |
810003 |
|
Camera |
DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£© |
800001 |
|
DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£© |
800003 |
|
DV-3 With video output£¨380/520 TV line£© |
800005 |
|
Digital camera adapter |
CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F) |
820001 |

|
