Description
-
Specifications
-

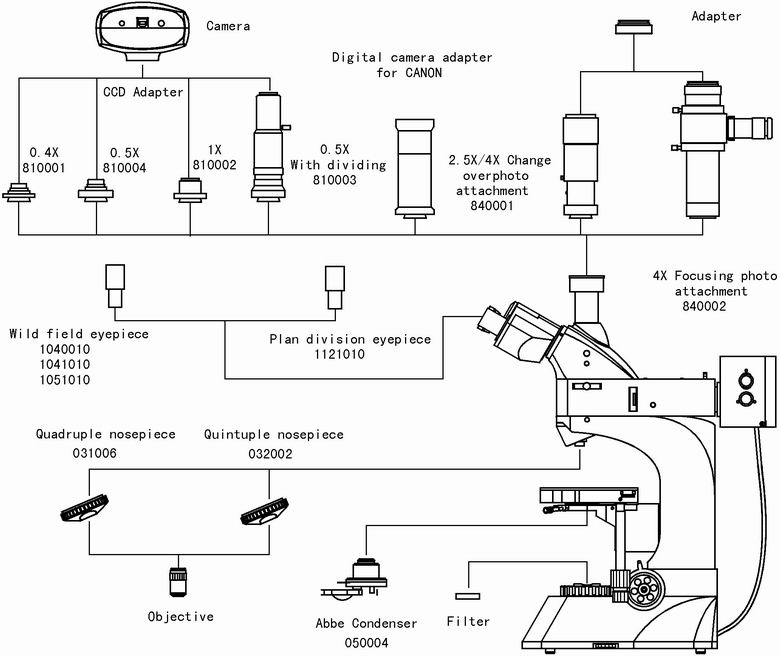

System diagram
-

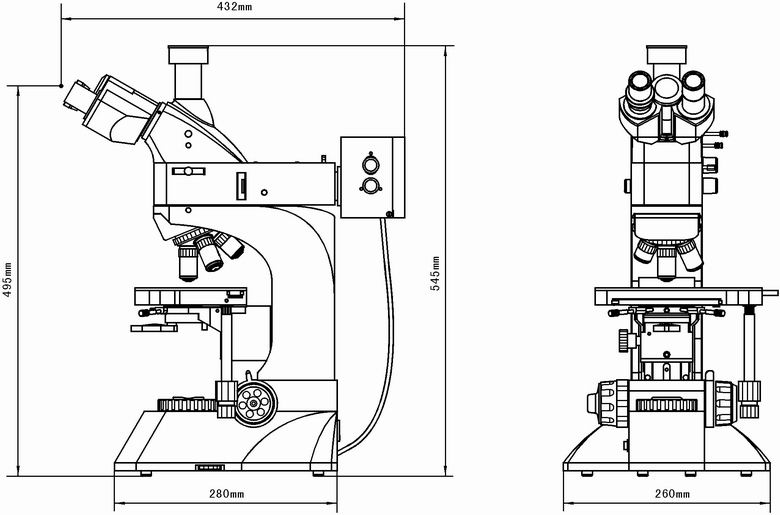

Dimension

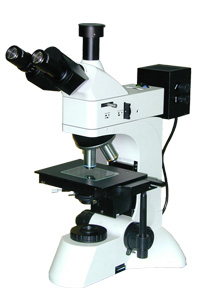

L3230 reflected and transmitted microscope is suitable to observe surfaces of non-transparent object or transparent
object.It is equipped with vertical illuminator, infinity plan achromatic objectives with long working distance (no cover
glass), wide-field eyepieces and set polarizer device in trinocular. It provides clear and high-contrast image, beautiful
sculpt,convenient control, etc. It is the ideal instruments in research work in biology, metallography, mineralogy,
precision engineering, electronics, etc. It is suitable for scientific research, teaching demonstration in the colleges and
factory.
Features
- With infinity plan achromatic objectives with long working distance (no cover glass) and wide-field eyepieces,
can get clear pictures and wide view field.
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- Movement of stage: 30mm
- With vertical illuminator and transmitted illuminator, can observe surfaces of non-transparent object or transparent
object.
- Trinocular, can switch to observe normally or to observe the Polarize, can send 100% of light to the binocular
eyepieces or to the top port.
Standard Configuration
|
Model |
L3230 |
|
Eyepiece |
Wide field WF10X(¦µ22mm) |
|
Objective |
Infinity plan achromatic objectives with long working distance (no cover glass) |
|
PL L5X/0.12(Work distance)：26.1 mm |
|
PL L10X/0.25(Work distance)：20.2 mm |
|
PL L40X/0.60£¨Spring£©(Work distance)：3.98 mm |
|
PL L60X/0.70£¨Spring£©(Work distance)：3.18 mm |
|
Eyepieces tube |
Trinocular inclined 30˚, can be shot in 100% light flux. |
|
Epi- illumination system |
6V 30W, halogen lamp, adjustable brightness |
|
Integrated field diaphragm, aperture diaphragm and filter switching device. Push-pull type analyzer and polarizer |
|
Focus system |
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm. |
|
Nosepiece |
Quintuple (Backward ball bearing inner locating) |
|
Stage |
Double layer mechanical (Size:210mmX140mm,movingrange:75mmX50mm) |
|
Transmitted illumination
system |
Abbe condenser NA.1.25 Rack & pinion adjustable |
|
Blue filter and Ground glass |
|
Collector for illumination with halogen lamp (With field diaphragm ) |
|
6V 30W halogen lamp, adjustable brightness |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Dividing eyepiece(field number:¦µ22mm) 0.10mm/Div |
|
|
Objective |
Infinity plan achromatic objectives with long working distance (no cover glass) |
|
|
PL L 20X/0.40(Work distance)：8.80mm |
2260120 |
|
PL L50X/0.70£¨spring£©(Work distance)：3.68 mm |
2260150 |
|
PL L80X/0.80£¨spring£©(Work distance)：1.25 mm |
2260180 |
|
PL L 100X/0.85£¨spring£©£¨Work distance£©:0.4mm |
2260111 |
|
Filter |
Green filter |
115002 |
|
Yellow filter |
115003 |
|
CCD adapter |
0.4X |
810001 |
|
0.5X |
810004 |
|
1X |
810002 |
|
0.5X with dividing 0.1mm/Div |
810003 |
|
Camera |
DV-1 Video output£¨380/520 TV line£© USB output £¨0.42 M pixel£© |
800001 |
|
DV-2 With USB output £¨1.3M,2.0M,3.0M pixel£© |
800003 |
|
DV-3 With video output£¨380/520 TV line£© |
800005 |
|
Digital camera adapter |
CANON(A570,A610,A620,A630,A640,A650,EF) NIKON( F) |
820001 |

|
