Model |

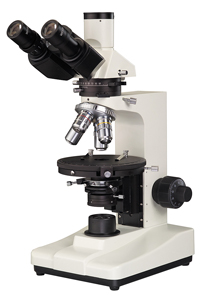

XPL-1500 (Transmitted illumination) |

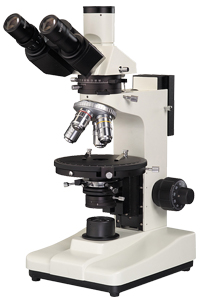

XPL-1530 (Transmitted & reflected illumination) |

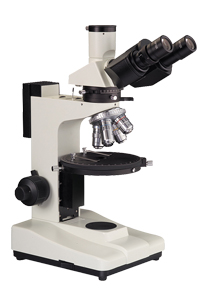

XPL-1503 (Reflected illumination) |
Eyepiece |
Wide field WF10X (¦µ18mm) |
Division eyepiece 10X (¦µ18mm) 0.10mm/div |
Objective (center adjustable) |
Strain-free plan achromatic objective
(cover glass:0.17mm) PL 4X/0.10 |
Strain-free plan achromatic objective (no cover glass) PL 5X/0.12 |
Strain-free plan achromatic objective
(cover glass:0.17mm)PL 10X/0.25 |
Strain-free plan achromatic objective (no cover glass) PL L 10X/0.25 |
Strain-free plan achromatic objective(cover glass:0.17mm) PL 40X/0.65 (spring) |
Strain-free plan achromatic objective (no cover glass)
PL L40X/0.60 (spring) |
Strain-free plan achromatic objective(cover glass:0.17mm) PL 60X/0.85 (spring) |
Strain-free plan achromatic objective (no cover glass)
PL L 60X/0.75 (spring) |
Reflected illumination |
Polarizer |
Rotatable |
Illumination |
6V 20w, halogen lamp, adjustable brightness |
Transmitted illumination |
Polarizer |
360°rotatable, have 0,90,180,270 four scale |
Collector |
For halogen lamp illumination |
Illumination |
6V 20w, halogen lamp, adjustable brightness |
Abbe condenser |
N.A. 1.25 Rack & pinion adjustable |
Eyepieces tube |
Trinocular, Inclination of 30˚, can send 100% of the image light to top photography port |
Intermediate attachment |
Built-in analyzer, can switch to normal observe or polarizing observe freely ,90° rotatable with scale, minimum retardation resolution 12' |
Bertrand lens , impellent style , center adjustable |
¦Ë compensator |
¦Ë/4 compensator |
Quarts wedge compensator |
Nosepiece |
Quadruple (Frontward ball bearing inner locating) |
Focus system |
Coaxial coarse/fine focus system, with tension adjustable and limit stopper, minimum division of fine focusing: 2μm |
Stage |
Rotatable stage, Diameter ¦µ150mm, 360° graduated (in 1° increments), minimum retardation resolution 6' center adjustable and with tightener |
