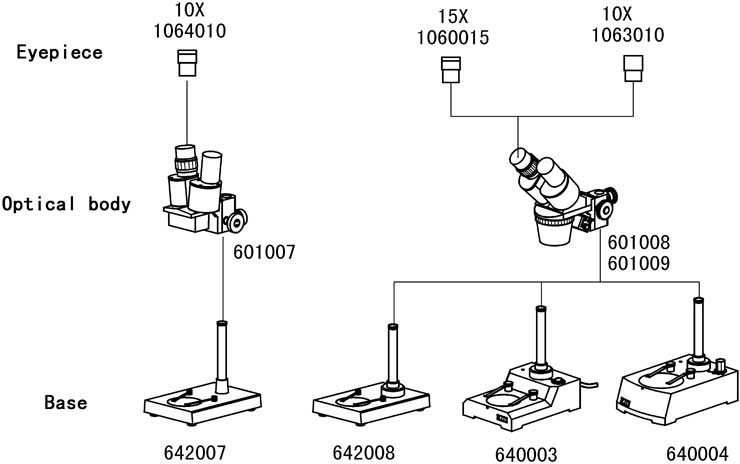

System diagram
-

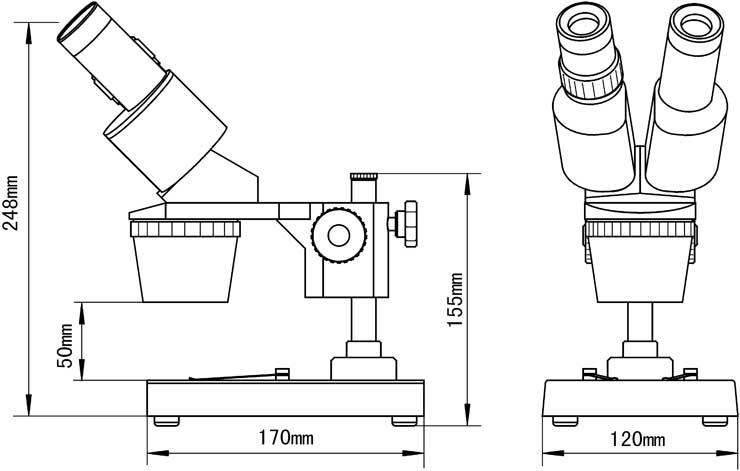

Dimension
XTD series stereo microscopes are a kind of positive image microscope; they have long working distance, clear and smooth image quality, wide field, convenience operation etc. They can be used for culture and education, scientific research, farming and forestry, electronics and precision machine industries widely.
Features
- Eyepieces field is wide and clear.
- XTD-1、XTD-2、XTD-3 series equipped with two pairs of objectives, XTD-201 series equipped with a pair of objectives
- Optical tube, 45° inclination. can be rotated 360°, interpupillary distance and the left eyepiece tube diopter can be adjusted
XTD-1 Series
|
Model Specification |
XTD-1A |
XTD-1B |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Objective |
1X,2X |
2X,4X |
|
Total magnification |
10X,20X |
20X,40X |
|
Visual field |
¦µ20, ¦µ10 |
¦µ10, ¦µ5 |
|
Work distance |
50mm |
|
Vertical effective movement |
50mm |
|
Base size |
170X120X21mm |
XTD-2Series
|
Model Specification |
XTD-2A |
XTD-2B |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Objective |
1X,2X |
2X,4X |
|
Total magnification |
10X,20X |
20X,40X |
|
Visual field |
¦µ20, ¦µ10 |
¦µ10, ¦µ5 |
|
Work distance |
50mm |
|
Vertical effective movement |
50mm |
|
Base size |
170X120X54mm |
|
Illumination model |
Reflected light source:6V8W halogen lamp |
XTD-3Series
|
Model Specification |
XTD-201 |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Optical body |
2X |
|
Total magnification |
20X |
|
Visual field |
¦µ10 |
|
Working distance |
70mm |
|
Vertical effective movement |
70mm |
|
Base size |
170X120X21mm |
XTD-201Series
|
Model Specification |
XTD-201 |
|
Eyepiece |
WF10X(¦µ20mm) |
|
Optical body |
2X |
|
Total magnification |
20X |
|
Visual field |
¦µ10 |
|
Working distance |
70mm |
|
Vertical effective movement |
70mm |
|
Base size |
170X120X21mm |
Optional accessories
|
Name |
Sort/Technique parameter |
NO. |
|
Eyepiece |
Divisional wide field eyepiece 10X(¦µ20mm 0.1mm/Div |
1111010 |
|
