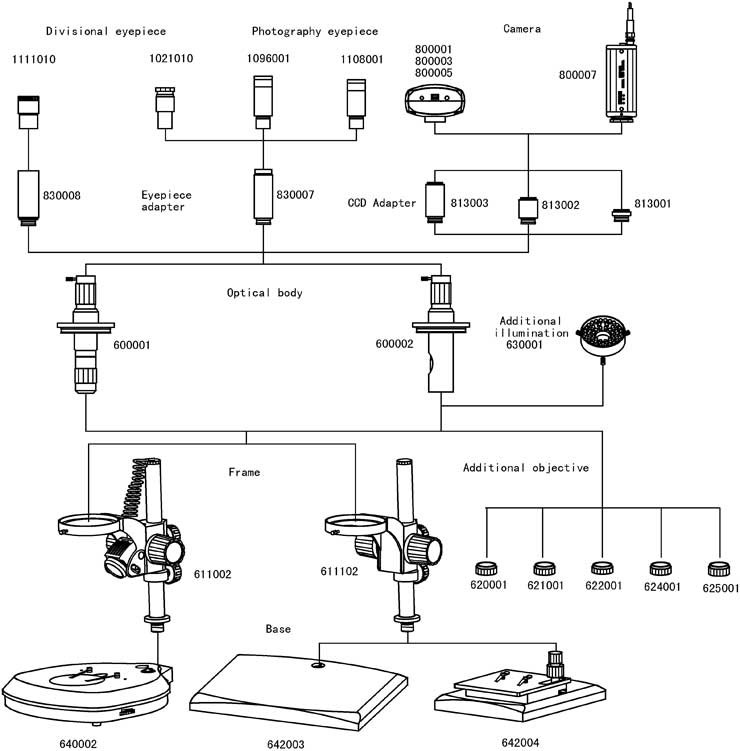

System diagram
-

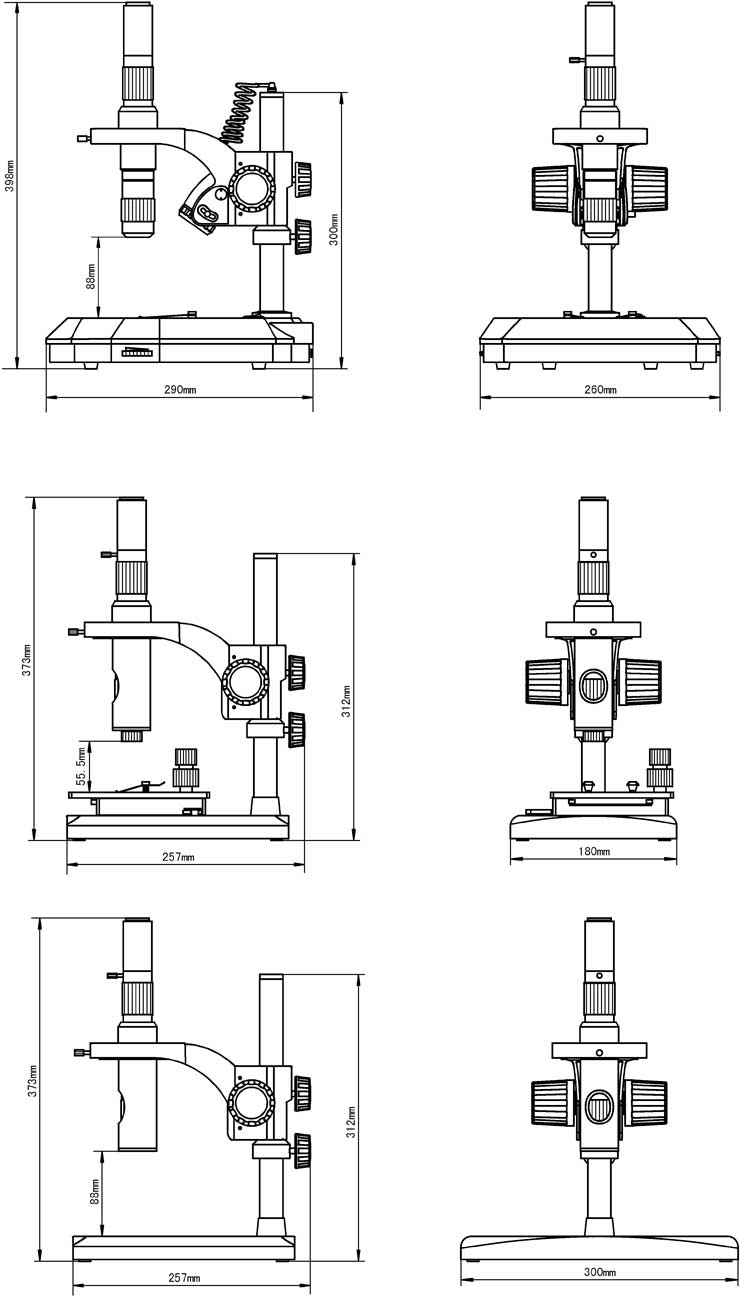

Dimension
XTM series monocular zoom microscopes, they have long working distance, clear and smooth image quality, convenience operation etc.
They can be used for inspection of electro-industry product line and printed circuit board.
Features
- Standard C mount design, connecting the camera directly.
- Digital & video camera, CCD camera and photography eyepiece can be chosen.
- XTM-1 series are equipped with outside rotating optical body.
- XTM-2 series are equipped with inside rotating optical body, annular LED illumination can be chosen.
- Objective range of zoom magnification 0.7X~4.5X.
XTM-1 series
|
XTM-1A |
XTM-1B |
XTM-1C |
|
Model
Specification |
XTM-1A |
XTM-1B |
XTM-1C |
|
CCD adapter |
1X |
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
|
Working distance |
88mm |
|
Vertical effective movement |
10mm<=h<215mm |
10mm<=h<265mm |
10mm<=h<240mm |
|
Base size |
260X290X55mm |
300X240X25mm |
240X180X25(mm) with movable stage, movement range:42X42(mm) |
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness
Transmitted light source:12V10W halogen lamp and adjustable brightness |
No light source |
XTM-2 series
|
XTM-2A |
XTM-2B |
XTM-2C |
|
Model
Specification |
XTM-2A |
XTM-2B |
XTM-2C |
|
CCD adapter |
1X |
|
Objective |
Objectives range of zoom magnification 0.7X~4.5X |
|
Working distance |
88mm |
|
Vertical effective movement |
10mm<=h<215mm |
10mm<=h<265mm |
10mm<=h<240mm |
|
Base size |
260X290X55mm |
300X240X25mm |
240X180X25(mm)with movable stage, movement range:42X42(mm) |
|
Illumination model |
Reflected light source:12V10W halogen lamp with reflector cup and adjustable brightness
Transmitted light source:12V10W halogen lamp and adjustable brightness |
No light source |
|
