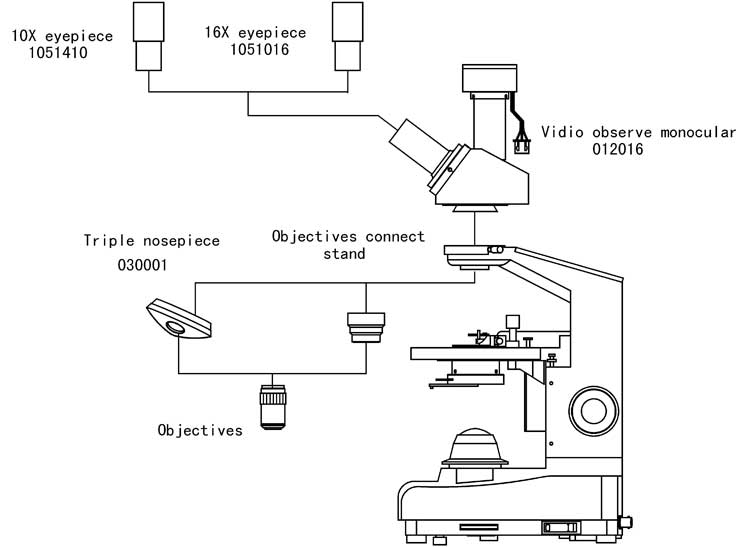

System diagram
-

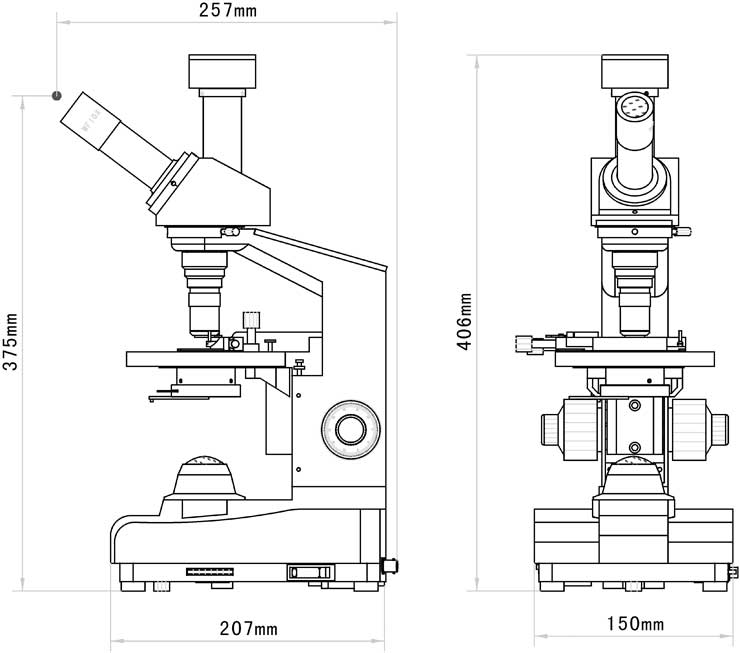

Dimension

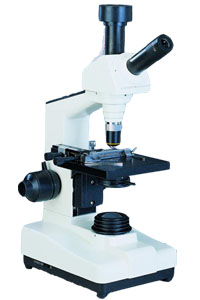

MC-1080 Video Checking Instrument is equipped with achromatic and wide field eyepiece, built-in color CMOS sensor, can obtain clear
image through optical system and video camera system. The new-style LED collector has lower power and longevity. It is mainly applied to
observe and display dry blood cell and acarus. It is the ideal instrument for life field, such as health care, beauty culture etc.
Features
- With wide field eyepieces and achromatic objectives, the field of view is widely and clear
- Built-in color CMOS sensor and video output
- Coaxial coarse/fine focus system, minimum division of fine focusing: 2μm
- High brightness white LED lamp with brightness control
- Standard Configuration
Standard Configuration
Model |
MC-1080 |
Eyepiece |
Wide field WF10X (¦µ18mm) |
Objective |
Achromatic objectives 10X/0.25 |
Video monocular |
Built-in clear color 1/3”CMOS sensor, horizontal resolution: 380TV lines, White Balance: Automatic, Color. |
Video cable |
Standard Video cable, length:1.8m |
Stage |
Fixed stage with slide moving holder moving range:70mmX30mm |
Focus mechanism |
Coaxial coarse/fine focus minimum division of fine focusing: 4μm |
Light source |
LED base without rechargeable batteries, input: 220V/110V (optional) |
Optional accessories
Name |
Sort/Technique parameter |
NO. |
Eyepiece |
Wide field WF16X (¦µ11mm) |
1051016 |
Objective |
Achromatic objectives 4X/0.10 |
2010204 |
Achromatic objectives 20X/0.40 |
2010120 |
Achromatic objectives 40X/0.65 |
2010140 |
Nosepiece |
Triple (Frontward ball bearing outer locating) |
|
|
