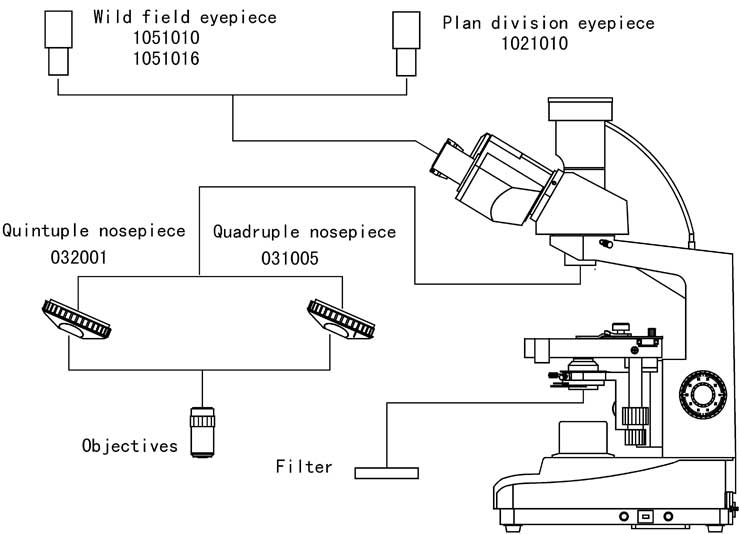

System diagram
-

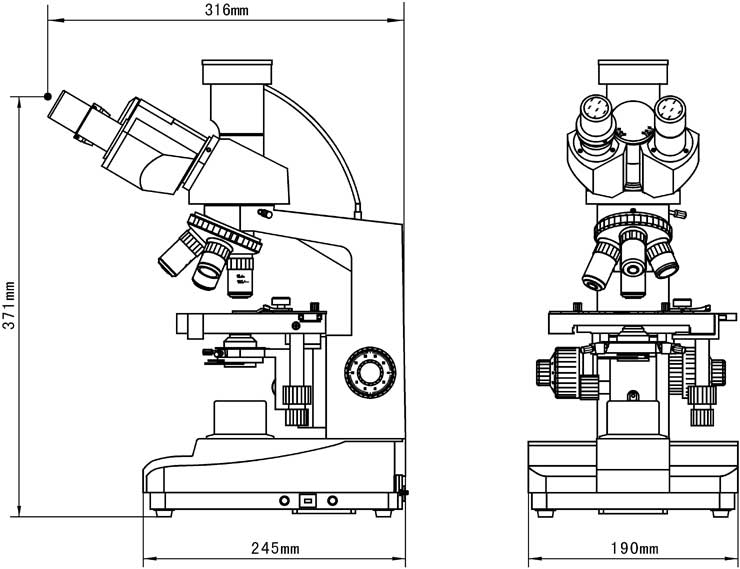

Dimension

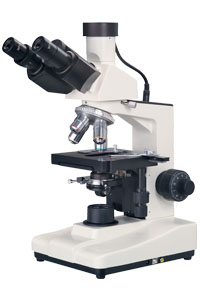

MC-1580 digital & video biological microscopes are equipped with achromatic objectives, wide field eyepieces and video trinocular. It provide
clear image, wide field, convenience operation. It can observe and display dynamic micro image at the same time. It can be used for biology, medicine,
agriculture and industry area widely. It is the ideal instrument in medical treatment, teaching demonstration and scientific research.
Features
- With wide field eyepieces and achromatic objectives, the field of view is widely and clear
- Built-in color CCD sensor, with Video and USB output
- Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
- 6V 20W halogen lamps with brightness control.
Standard Configuration
Model |
MC-1580 |
Eyepiece |
WF10X(¦µ18mm) |
Objective |
Achromatic 4X/0.10 |
Achromatic 10X/0.25 |
Achromatic 40X/0.65(Spring) |
Achromatic 100X/1.25(Spring, oil) |
Video trinocular |
inside clear color 1/3”CCD sensor |
USB2.0 Output, Max resolution: 720X576(PAL) 720X480(NTSC). White balance: Automatic |
System requirement: Windows 2000/ Windows XP/Windows Vista. |
VIDEO Output, Horizontal resolution: 520 TV lines, 1Vp-p/75Ω NTSC/PAL (optional).White balance: Automatic. |
Accessories: Video cable, USB cable, Driver CD, User guide. Power supply adapter:12V DC |
Focus system |
Coaxial coarse/fine focus, with tensional adjustable and up stop, minimum division of fine focusing: 2μm. |
Nosepiece |
Quadruple(Frontward ball bearing inner locating) |
Stage |
Double layer mechanical ( Size:135mmX125mm, Move range: 75mmX35mm) |
Abbe condenser |
N.A.1.25 Rack & pinion adjustable |
Filter |
Blue filter |
Frosted filter |
Collector |
For halogen lamp |
Light source |
6V 20W halogen lamp with brightness control |
Optional accessories
Name |
Sort/Technique parameter |
NO. |
Eyepiece |
Wide field WF16X(¦µ11mm) |
1051016 |
Dividing 10X(¦µ18mm) 0.1mm/Div |
1021010 |
Objective |
Plan achromatic 4X/0.10 |
2040104 |
Plan achromatic 10X/0.25 |
2040110 |
Plan achromatic 40X/0.65(Spring) |
2040140 |
Plan achromatic 100X/1.25(Spring, oil) |
2040111 |
Nosepiece |
Quintuple(Frontward ball bearing inner locating) |
|
Filter |
Green filter |
|
Yellow filter |
|

|
